F-01Custom Sheet Metal Fabrication

Sheet Metal Shearing

Every part starts as a clean blank. We cut oversized sheets down to precise, burr-free blanks with almost no waste, ready for punching, bending and assembly.

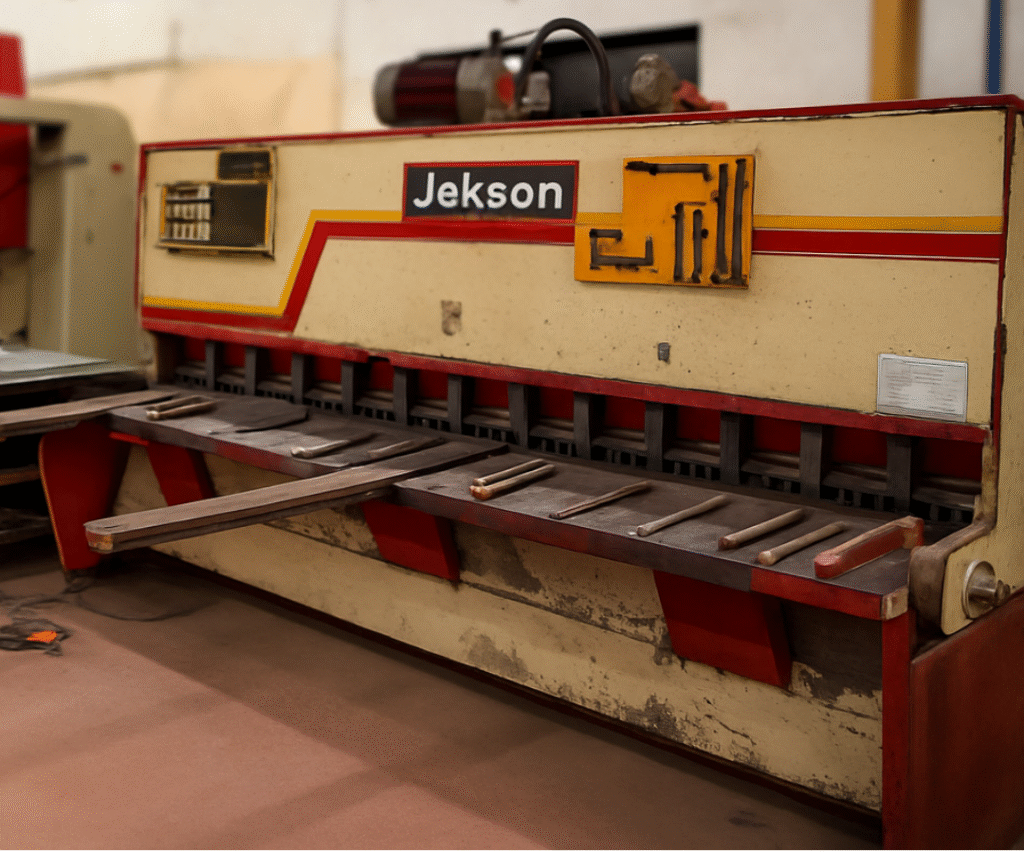

Sheet Metal Shearing at FTI Manufacturing, Navi Mumbai
FTI shop floor · Mahape, Navi Mumbai
Machine
JEKSON CNC hydraulic shear
Sheet width
Up to 60"
Sheet length
120" – 144"
Thickness
Up to 6 mm
Tensile capacity
Up to 45 kg/mm²
Back gauge
DRO-enabled

In-house · Sheet Metal Shearing

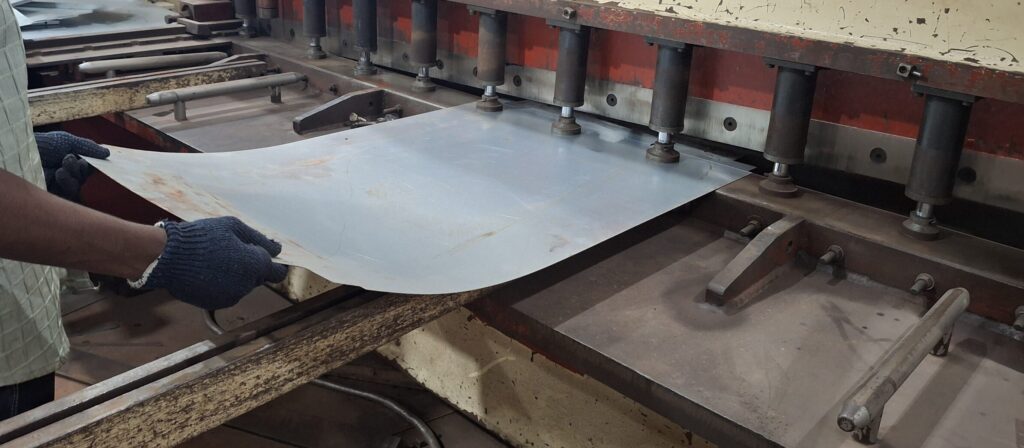

How we shear

01

Clamp

Hydraulic hold-downs lock the sheet so it cannot shift or twist during the cut.

02

Cut

A synchronised moving beam with adjustable rake angle and set blade gap gives a straight, chip-free edge.

03

Repeat

Programmable stroke length handles both full-size sheets and short pieces with the same accuracy.

04

Hand off

Blanks move straight to turret punching and bending on the same floor.

Benefits

Why choose FTI for Sheet Metal Shearing

Burr-free edges

Clean cuts with high repeatability, batch after batch.

Minimal scrap

Shearing produces no chips, and nesting blanks keeps offcuts low.

Built to last

Hardened guideways and four-side usable blades keep tolerances steady.

Inspected by hand

Skilled operators check each sheet before it moves on.

Typical applications

  • Precision blanks for punching and bending
  • Panels and enclosure blanks
  • Large structural sheets
  • Short-run and prototype blanks
Quote this process

Engineering & design support

Send a 3D model, not a re-drawing job.

Our in-house engineers help with concept development, design for manufacture and assembly (DFM/DFA), product improvement and reverse engineering. Native CAD files are imported, unfolded and sent directly to CAM, which removes manual errors and cuts lead time.

  • .dwg
  • .dxf
  • .step
  • .iges
  • .sldprt
  • .sldasm
  • .pdf

Lean, JIT & Kanban

We plan production against your orders, not our stock. Agreed minimum and maximum Kanban levels set up a pull system, so you hold less inventory and still never run short.

  • Just-in-time production aligned to your schedule
  • Min/max Kanban stock levels
  • Pipeline visibility on open orders

Drawings ready?

Send your drawings. We usually quote within 24 hours.

We accept STEP, DXF, DWG, IGES, SolidWorks and PDF files. Our engineers review every part for manufacturability before quoting.
